Motion Artifact Cancellation Experiment

A ring’s PPG heart-rate estimate falls apart under motion. This is a review of the experiment that tried to fix it: what motion actually does to the signal, which mechanisms considered, what shipped, what it bought, and where the remaining error lives. It is a companion to Heart Rate Estimation from Raw PPG, which covers the estimator as a whole and which this assumes.

1. The problem

The ring streams two PPG channels and a 3-axis accelerometer at 25 Hz. The previous release reduced the accelerometer to a single per-second magnitude standard deviation and used it only to label windows rest-versus-active. It never entered the HR estimate. That is the gap this work closes, and the motivating asymmetry is stark: the Goodix chip’s own HR is demonstrably motion-compensated — flat at 86–103 bpm across cadences spanning 73–216 bpm-equivalent, correlation with cadence −0.32 — while ours was not.

The cost showed up as a clean monotonic degradation across motion octiles. In the baseline, MAE runs 1.65 bpm in the stillest octile to 14.08 bpm in the highest, while direct coverage falls 71.0 % → 32.1 %. Accuracy and availability degrade together: the estimator gets worse and abstains more, so what it emits under motion is a shrinking, harder set. Under motion nearly one usable window in five was already confidently wrong (2,016 of 10,834 active usable windows, 18.6 %, against a 3.1 % resting rate).

2. Pipeline

per 12 s window:

  ACC x/y/z @25Hz ──┬─ magnitude → band-pass 0.5–4.0 Hz → dominant cadence
                    │                                     + prominence
                    │
                    └─ per-axis band-pass ────────────┐  [only above 0.20 g]
                                                      │
  PPG1, PPG2 (raw) ───────────────────────────────────┤
                                                      ▼
                              ┌───────────────────────────────────────┐
                              │ adaptive cancellation                 │
                              │  gate: motion ≥ 0.20 g                │
                              │  ridge block least-squares of PPG on  │
                              │  a lagged ACC basis (3 axes × 8 taps) │
                              │  subtract the fitted part             │
                              └───────────────────────────────────────┘
                                                      │
                             adopted only if energy was removed ───────┤
                                                      ▼
   channel select → band-pass → ┬─ beat counting     [TIME DOMAIN]
                                └─ spectral peak     [FREQUENCY DOMAIN]
                                                      │
                        fuse   agree ≤ 8 bpm → mean; else the spectral estimate
                                                      │
                        gate   usable ⟺ agree ≤ tolerance
                               tolerance = 6.0 if the window was cleaned, else 5.0

Cancellation runs before channel selection, deliberately. Which channel is cleaner is a question about the pulse; under motion, ranking the raw channels answers it about the artifact instead.

3. Mechanisms considered

Three were proposed. Two are not in the shipped path, and both exclusions are measured rather than assumed.

3.1 Cadence-informed spectral de-weighting — implemented, measured, rejected

Attenuate the ACC cadence and its harmonics in the PPG spectrum before the estimator picks a peak. Shipped disabled rather than deleted, so the negative result stays reproducible.

It fails for reach, not for correctness. On the 3.28 % of active windows it targets it genuinely helps — MAE 33.77 → 26.78, improving 68 % of them. But of the windows the spectrum already had right, de-weighting moved 36.1 % by more than 5 bpm and made 36.6 % of those wrong:

Gating on positive evidence of a lock removes the collateral damage but exposes a subtler defect: it manufactures agreement. De-weighting pushes the spectral estimate toward the beat-counter estimate, which inflates the very statistic that decides usability — so coverage rises and confidently-wrong rises with it (92 → 98). The mechanism corrupts its own quality gate. That is an argument against the mechanism, not against the gate.

3.2 ACC spectral subtraction — not implemented

Skipped once the broadband finding landed. Spectral subtraction addresses the same narrow failure de-weighting does — a competing peak — so it would have failed for the same reason. Recorded as a deliberate omission rather than an oversight.

3.3 Adaptive cancellation — shipped

Regress each PPG window on a lagged basis of the ACC axes and subtract the fitted part, so what reaches both estimators is already motion-cleaned.

This succeeds where de-weighting cannot because it uses the accelerometer’s phase and waveform, not merely the frequency of its peak. It removes what actually correlates with measured motion, at whatever frequency that happens to be — which is what lets it address broadband corruption. It also cleans the time domain, so the beat counter is no longer captured by the same artifact as the spectrum.

Implementation. Ridge-regularised block least-squares — the Wiener solution an adaptive filter converges to, solved directly. Exact, no step-size or convergence tuning, fully vectorised; the sample-by-sample alternative would have been ~19 M Python iterations across the corpus. A streaming port swaps in the recursive update that converges to the same filter; the model is identical, only the solver differs. It is causal-capable: only lags 0…7 are used, nothing outside the window, verified by a test asserting that a window estimated in isolation equals the same window estimated inside a longer segment.

4. Parameters, and the evidence behind them

Every value below was set by measurement. The two that matter most are the gate and the ridge.

The 0.20 g gate is the single most important parameter, because cancellation is not free. Cleaning changes the spectral estimate, and some cleaned windows then legitimately disagree with the beat counter and are correctly dropped. Below ~0.2 g the artifact removed is worth less than the signal it costs:

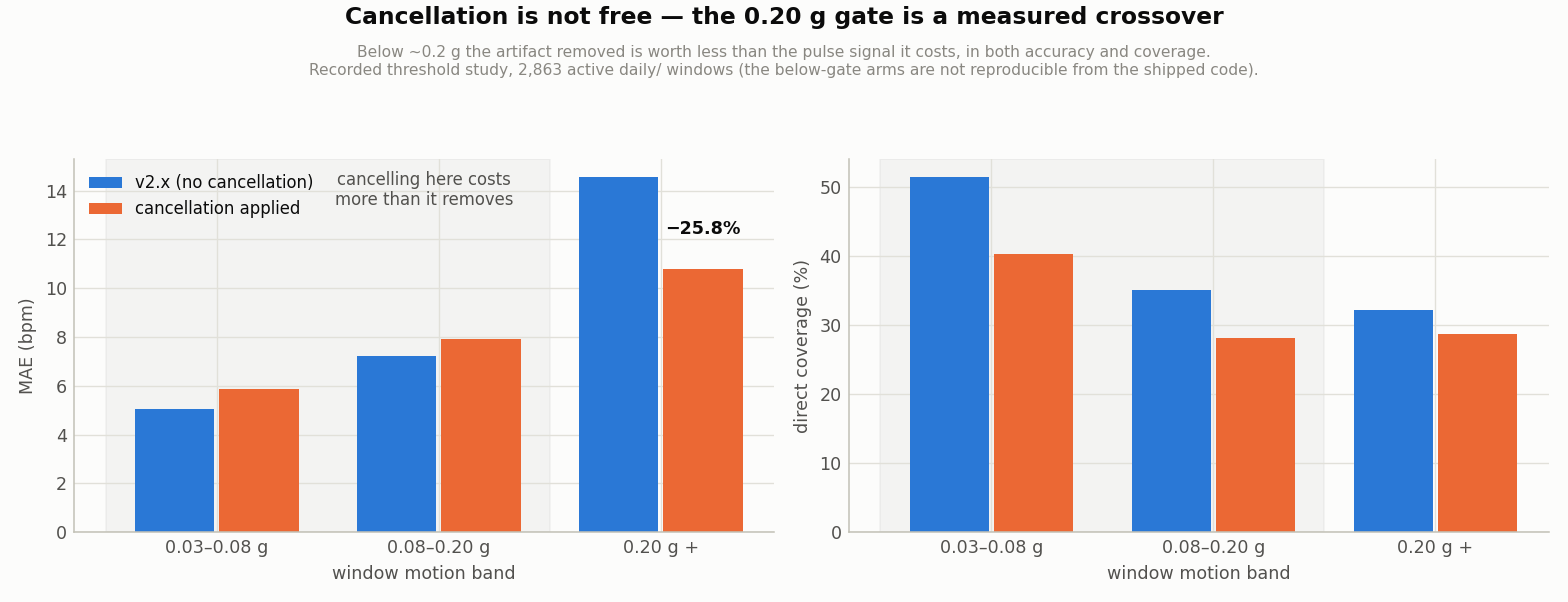

Below ~0.2 g, cancelling costs both accuracy and coverage; above it, accuracy improves sharply for a small coverage cost. The gate sits at the crossover. These are the recorded threshold-study values — the below-gate arms require running the canceller with a lowered gate, which the shipped code never does.

A threshold sweep over the whole active cohort confirms the optimum (MAE / confidently wrong): 0.10 → 7.09/153, 0.20 → 6.90/155, 0.15 → 7.04/156, 0.30 → 7.17/165, against a baseline of 7.81/186.

A consequence worth stating plainly: because the gate sits well above the rest cutoff, a resting window never enters the cancellation branch at all. The old path is not reproduced for rest — it is the path that runs.

5. Results

Measured by running the harness twice on identical windows, once with the motion reference and once without. The window grid, chip reference, motion and cohort labels are verified identical across the two arms, so this is a paired comparison rather than a cross-version one.

5.1 By corpus

5.2 By cohort

5.3 Where the effect actually lands

The effect is surgically confined to what it was aimed at:

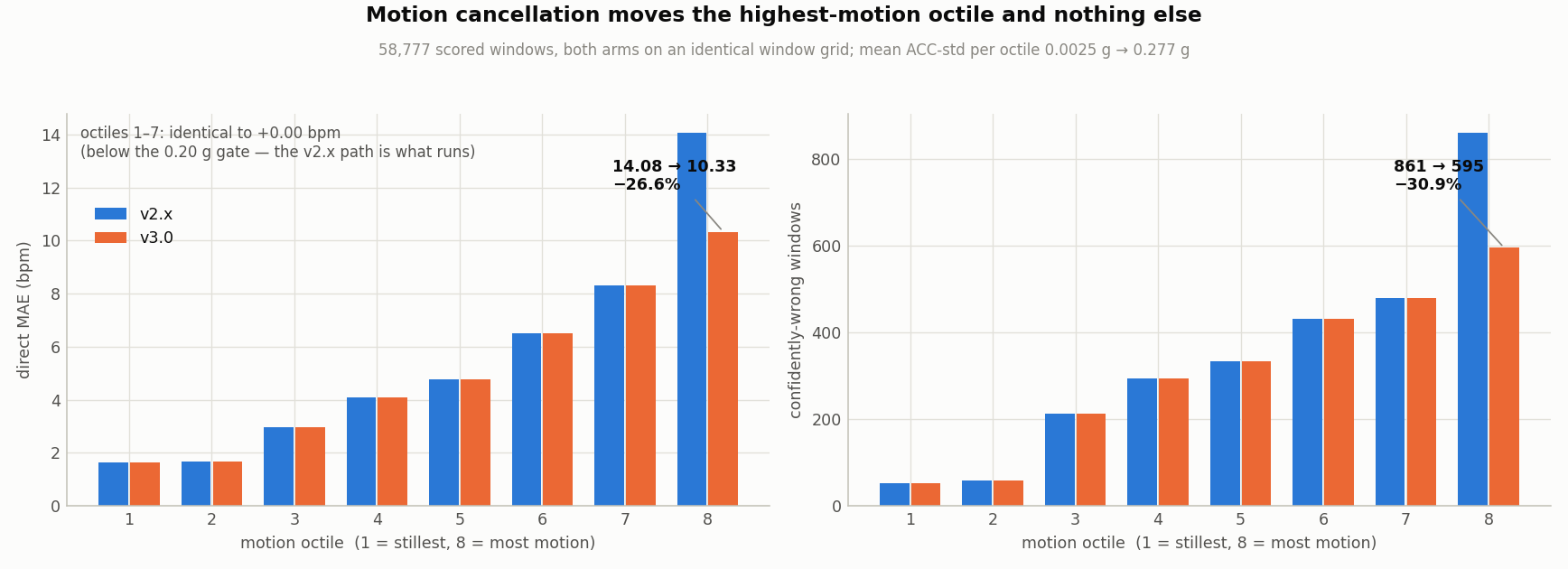

Seven of eight octiles are untouched because they sit below the 0.20 g gate and run the old code path. All of the release’s effect — in both error and confident-error count — lands in octile 8.

Cancellation touched 6,853 windows (11.7 % of the corpus). On those windows alone, MAE moves 14.45 → 10.42. The other 51,924 windows are bit-identical between the two arms — the strongest available form of the no-regression claim, since it is exact equality on real data rather than a tolerance or a comparison of summary statistics.

5.4 What cancellation does to the windows it touches

The aggregate improvement conceals what the mechanism is actually doing, and the detail matters more than the headline.

Scored on the 990 cleaned windows both arms emitted — the like-for-like set, since a window present in only one arm has no error to compare — MAE moves 10.01 → 7.98. But that net is the residual of two much larger opposing quantities:

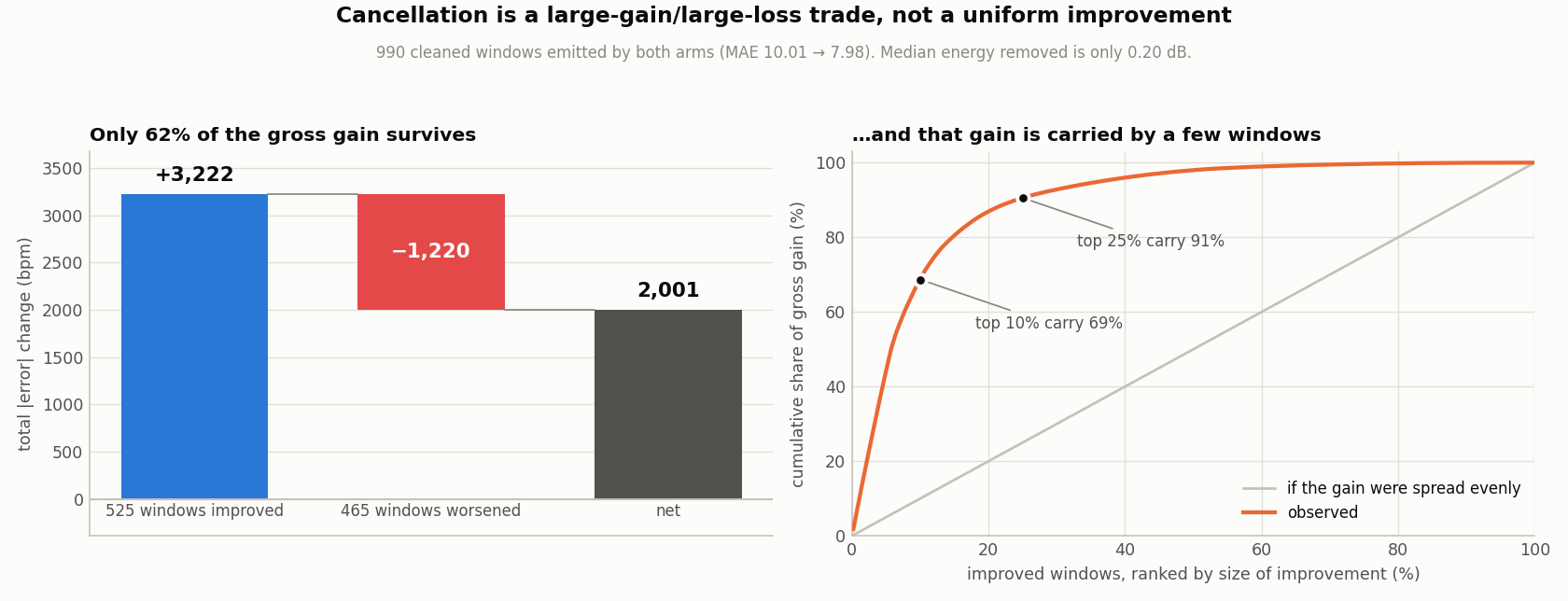

Nearly half the windows the canceller touches get worse, and only 62 % of the gross gain survives. The mechanism is not a uniform small correction; it is a high-variance trade that comes out ahead. The gain is also concentrated — the top 10 % of improved windows carry 69 % of the gross gain, the top 25 % carry 91 % — which is how a median energy removal of just 0.20 dB (p90 0.67 dB) produces a 26.6 % octile improvement.

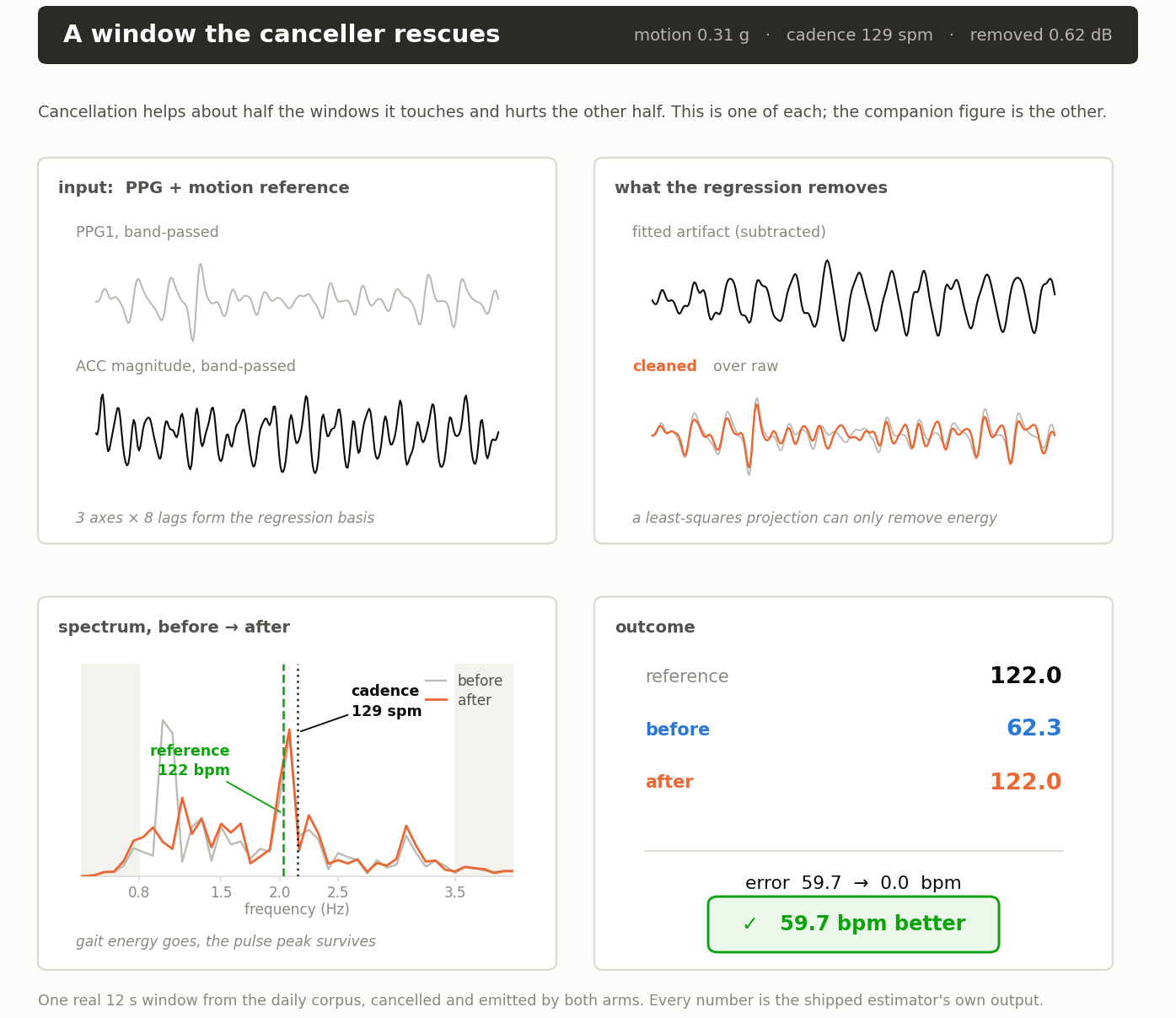

Two real windows make the trade concrete — the largest gain and the largest loss in one recording, both above the gate, both emitted by both arms. First the good case, where cancellation strips the gait energy that had the old path locked at half rate:

And the bad one, which is not a curiosity but the coincidence failure of §7 caught in the act. Its cadence (~61 steps/min) sits about an eighth of an FFT bin from its heart rate (~62 bpm) — close enough that the two cannot be told apart in the spectrum at all — so the lagged accelerometer basis spans the pulse as well as the artifact, the regression takes both, and the estimator locks onto a harmonic at ~117 bpm:

5.5 Release gate

Targets set before the work began, scored honestly against it:
